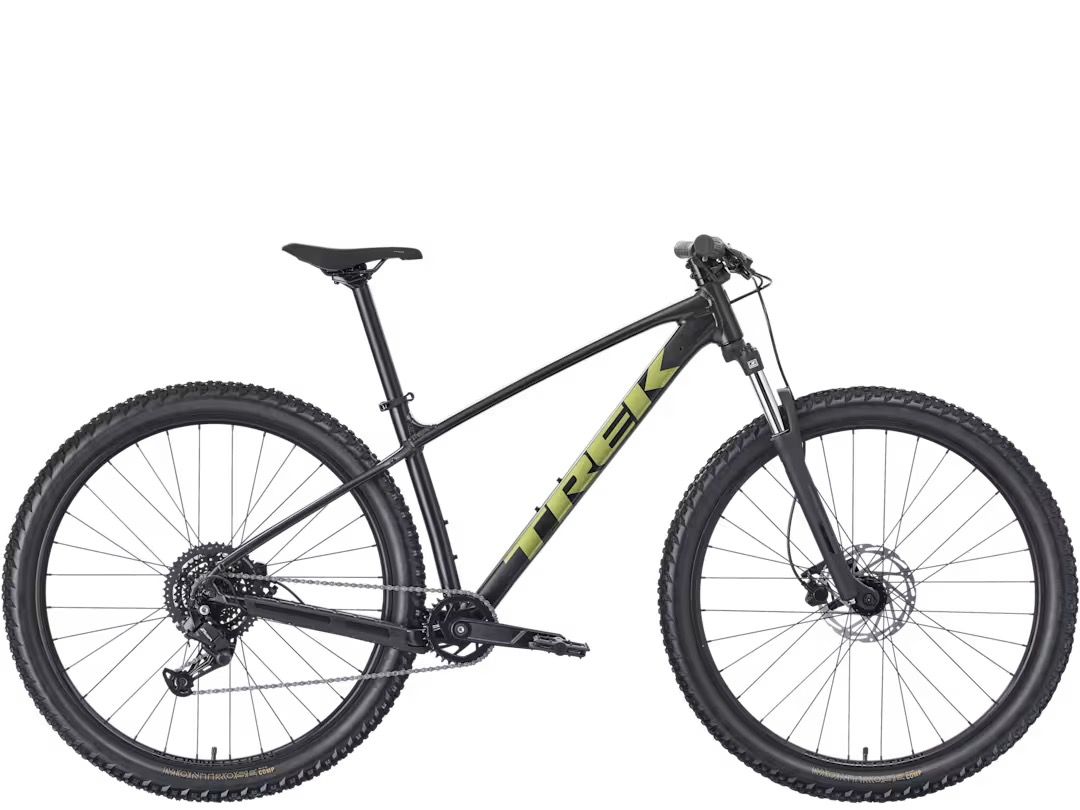

27 Trek Marlin 4 Gen 3

Frameset

Frame

Size XXS, XS: Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

Size S, M, ML, L, XL: Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

Fork

Size XXS: SR Suntour XCM 30, coil spring, preload, hydraulic lockout, 42mm offset for 26" wheel, 100mm QR, 100mm travel

Size XS: SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel

Size S: SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel

Size M, ML, L, XL: SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel

Drivetrain

Shifter

Shimano M315, 8 speed

Rear derailleur

Shimano ESSA U2000

Crank

Size XXS, XS: ProWheel alloy, 30T narrow-wide steel ring, 160mm length

Size S, M, ML: ProWheel alloy, 30T narrow-wide steel ring, 170mm length

Size L, XL: ProWheel alloy, 30T narrow-wide steel ring, 175mm length

Bottom bracket

Závitované ložisko.

Cassette

Shimano HG300, 11-45, 8 speed

Chain

KMC Z8.3, 8 speed

Pedal

Nylon platform

Max chainring size

1x: See FAQ, 2x: 36T, 3x: 42T

Wheels

Hub front

Formula DC-20, alloy, 6-bolt, 100x5mm

Skewer front

116x5mm QR

Hub rear

Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm

Skewer rear

173x5mm QR

Rim

Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve

Tire

Size XXS: Bontrager Montrose Comp, wire bead, 30 tpi, 26x2.35''

Size XS, S: Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''

Size M, ML, L, XL: Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''

Max tire size

Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer

Components

Saddle

Bontrager Verse Short, stainless steel rails

Seatpost

Size XXS: Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length

Size XS, S, M: Bontrager alloy, 31.6mm, 12mm offset, 330mm length

Size ML, L, XL: Bontrager alloy, 31.6mm, 12mm offset, 400mm length

Handlebar

Size XXS, XS: Bontrager alloy, 31.8mm, 5mm rise, 690mm width

Size S: Bontrager alloy, 31.8mm, 15mm rise, 720mm width

Size M, ML, L, XL: Bontrager alloy, 31.8mm, 15mm rise, 750mm width

Grips

Trek Line Comp, nylon lock-on

Stem

Size XXS, XS, S: Bontrager Comp, 31.8mm, 7 degree, 35mm length

Size M, ML, L: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length

Size XL: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length

Headset

Semi-integrated, 1-1/8''

Brake

Size XXS, XS, S: Tektro HD-M276 hydraulic disc

Size XXS, XS, S, M, ML, L, XL: Power BH-M286TF hydraulic disc, 160mm rotor

Size M, ML, L, XL: Tektro HD-M275 hydraulic disc

Size M, ML, L, XL: Power BH-M286TF hydraulic disc, 180mm rotor

Brake rotor

Size XXS, XS, S, M, ML, L, XL: Tektro, 6-bolt, 160mm

Size M, ML, L, XL: Tektro, 6-bolt, 180mm

Rotor size

Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer

Weight

Weight

M - 14.90 kg / 32.85 lbs

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
