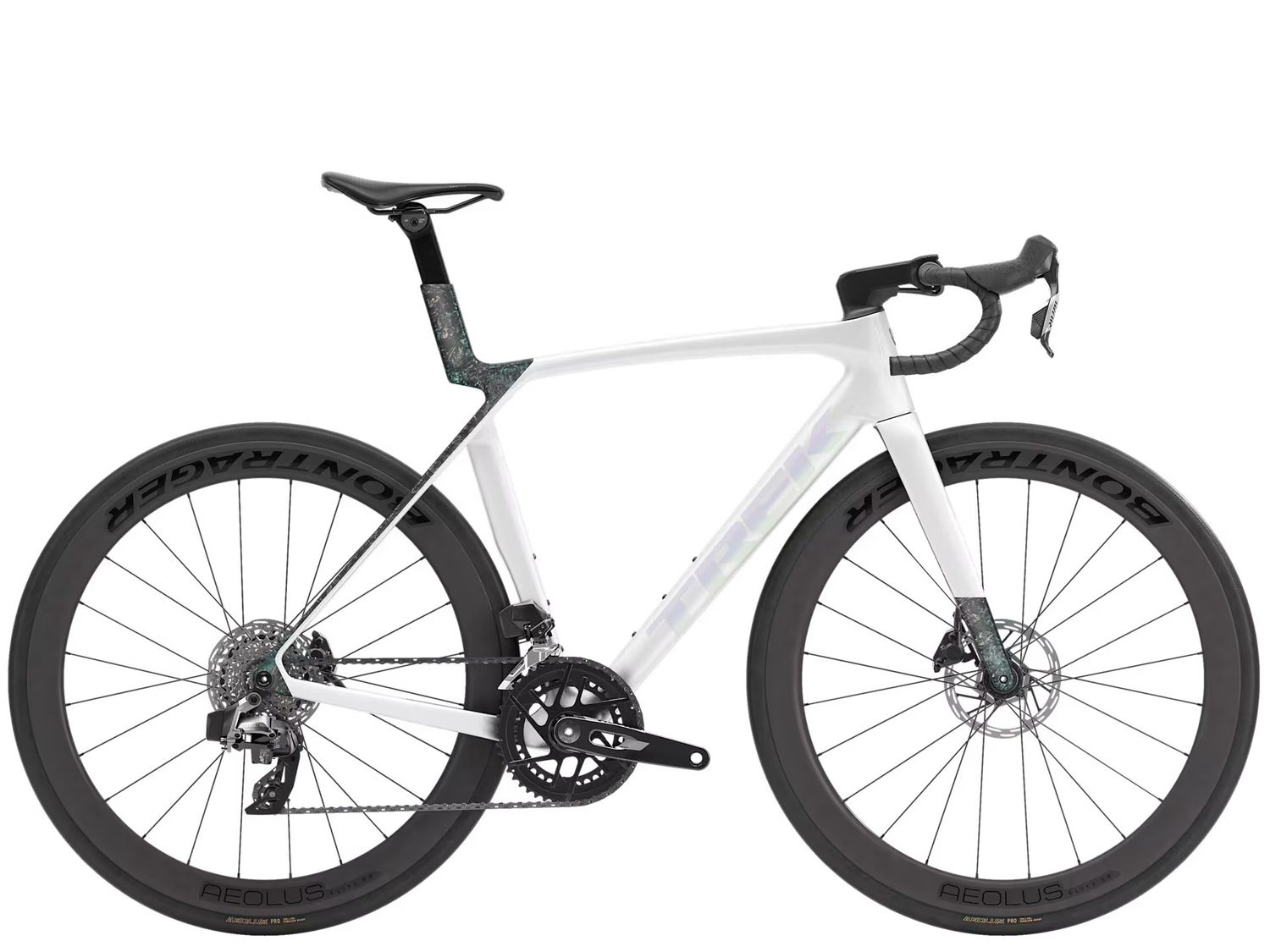

Madone SL 6 AXS Gen 8 M/L - Gloss Crystal White/Matte Deep Smoke (56)

Madone SL 6 AXS Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point with a more economical OCLV 500 Carbon layup than its SLR sibling. A SRAM Rival AXS E1 electronic groupset delivers lightning-fast electronic shifting, and pairs with alloy handlebars to keep the price down. Plus, it's topped off with carbon wheels for extra lightweight performance.

ML - 8.11 kg / 17.88 lbs (with TLR sealant, no tubes)

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system

Battery

SRAM AXS battery pack (with charger)

Drivetrain

*Shifter

Size: XS, S, M, ML, L, XL

SRAM Rival AXS E1

Size: XS, S, M, ML, L, XL

SRAM Rival AXS, 12 speed

Front derailleur

SRAM Rival AXS, braze-on

Rear derailleur

SRAM Rival AXS, 36T max cog

*Crank

Size: XS, S

SRAM Rival AXS, 48/35, DUB, 165mm length

Size: M, ML

SRAM Rival AXS, 48/35, DUB, 170mm length

Size: L, XL

SRAM Rival AXS, 48/35, DUB, 172.5mm length

Bottom bracket

SRAM DUB, T47 threaded, internal bearing

Cassette

SRAM XG-1250, 10-36, 12 speed

Chain

SRAM Rival E1, 12/13 speed

Max chainring size

1x: 54T, 2x: 56/43

Wheels

Wheel front

Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru axle

Wheel rear

Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim depth, Sram XDR freehub, 142x12mm thru axle

Skewer front

Bontrager Switch chamfered thru axle

Skewer rear

Bontrager Switch chamfered thru axle, removable lever

Tire

Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120tpi, 700x28mm

Tire part

Bontrager TLR sealant, 180 ml/6 oz

Rim strip

Bontrager TLR

Max tire size

32mm (as measured, see manual for details)

Component

Saddle

Bontrager Aeolus Elite, austenite rails, 145mm width

Seatpost

Madone aero carbon seatpost, 0mm offset, short length

*Handlebar

Size: XS
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width

Size: S, M
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width

Size: ML, L
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width

Size: XL
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width

Handlebar tape

Trek EcoTack

*Stem

Size: XS
Trek RCS Pro, -7 degree, 80mm length

Size: S, M
Trek RCS Pro, -7 degree, 90mm length

Size: ML, L
Trek RCS Pro, -7 degree, 100mm length

Size: XL
Trek RCS Pro, -7 degree, 110mm length

Brake rotor

SRAM Paceline, rounded, centerlock, 160mm

Rotor size

Max brake rotor sizes: 180mm front, 160mm rear

* Specifications and MSRP are subject to change without notice

** $30 Charge for Shipping of Bike from Distribution to Bike Shop
