Trek Checkpoint ALR 4

Name: Trek Checkpint ALR 4
Brand: Trek
SKU: 413_sku_main
Price: 1919.93 CAD
Availability: InStock

SKU 5304232

$1 919.93

SALE

was ~~$2 399.98~~ Save 20%

Comes with 2 years of New Bike Tune Ups and 10% Off accessories for 3 months from date of purchase.

In stock: 1 available

Quantity:

Allowed purchase quantity: from 1 to 5 items

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

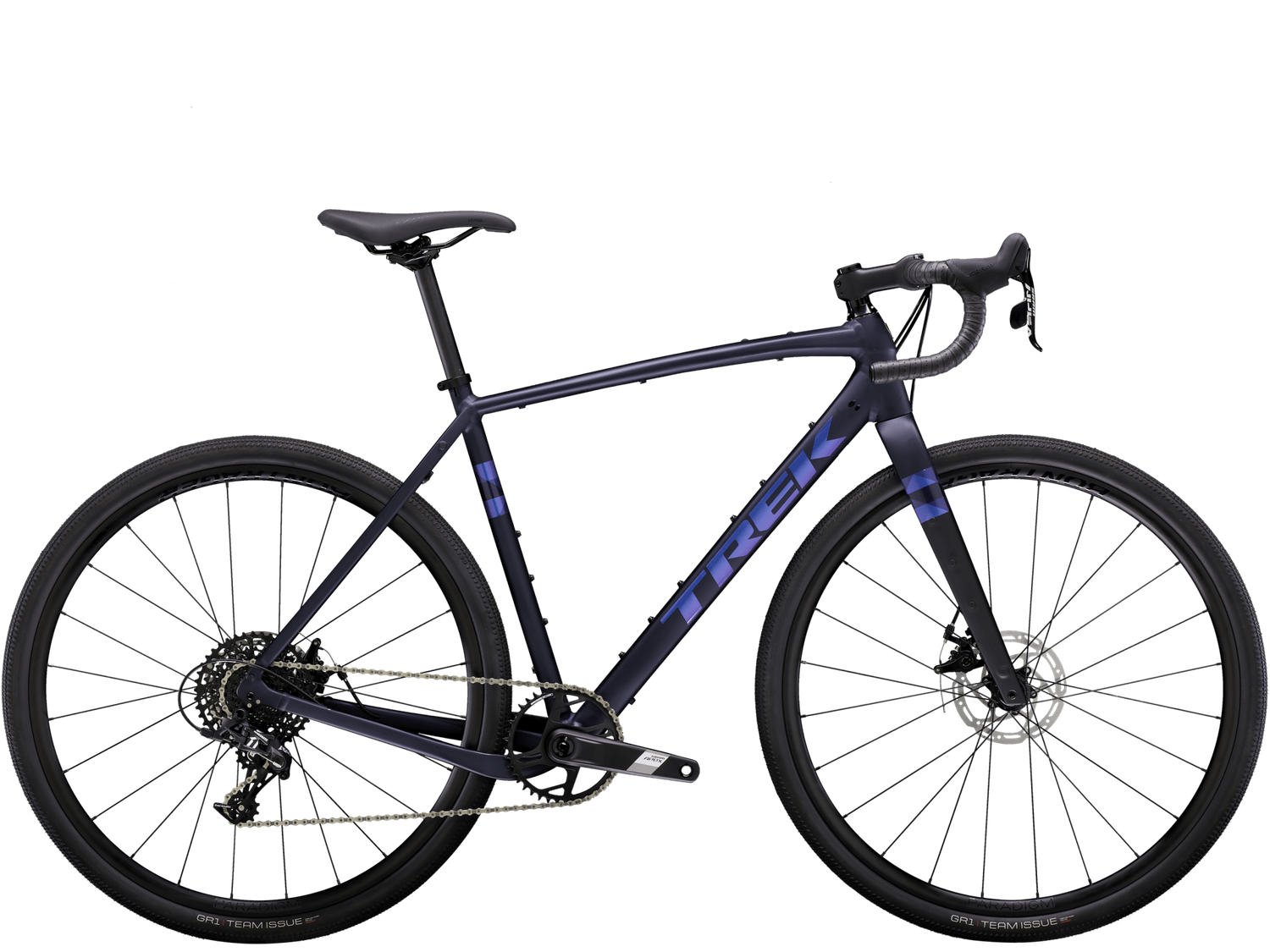

Trek Checkpoint ALR 4

Product Details

Brand: Trek

UPC: 768682570982

Checkpoint ALR 4 is a high-value gravel bike ready for the roads less traveled. Kitted out with a 300 Series Alpha Aluminum frame, Checkpoint ALR 4 is just as responsive on chunky gravel roads as it is smooth on the tarmac. Tons of features like tubeless ready wheels, a SRAM Apex 11-speed drivetrain, and mechanical disc brakes make Checkpoint ALR 4 the perfect ride for ease of entry into the wide world of gravel.

It's right for you if...

You're ready for adventures beyond the beaten path and want a gravel bike that balances budget and capability. Checkpoint ALR 4 is your ticket to turning every ride into an adventure.

The tech you get

A responsive 300 Series Alpha Aluminum frame, hidden cables that won't interfere with bags, integrated rack, fender, and frame bag mounts, a 1x11 speed SRAM Apex drivetrain for smooth shifting on punchy climbs and variable terrain, mechanical disc brakes for ease of stopping quick in all conditions, tubeless ready rims, and wide Bontrager Girona Pro 700x42c gravel tires for added comfort and traction.

The final word

If you're ready to start exploring every road while taking on the daily grind, Checkpoint ALR 4 is the ride for you. Versatility is the name of the game and a durable alloy frame, mounts for all kinds of accessories, and wide tires make for comfort and customization wherever the road, or lack thereof takes you.

The Walkthrough

Why you'll love it

The durable and capable 300 Series Alpha Aluminum frame makes for a fun, stable, and responsive ride
You get serious versatility that's suited for a wide variety of ride styles, from gravel and bikepacking to daily commutes
Massive tire clearance means you can use tires up to 45c for extra traction and stability in any conditions
Fork, top tube, and integrated frame mounts make it easy to carry gear and water
Powerful mechanical disc brakes make stopping in all conditions easy

Technical Specifications

Frameset
	Frame	300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
Suspension
	Fork	Size: 49,52,54,56,58,61 Checkpoint, full carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle Size: 49,52,54,56,58,61 Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Drivetrain
	Shifter	SRAM Apex, 11 speed
	Rear derailleur	SRAM Apex 1, long cage, 42T max cog
	Crank	Size: 49 SRAM Apex 1, 40T, DUB Wide, 165mm length Size: 52 SRAM Apex 1, 40T, DUB Wide, 170mm length Size: 54,56 SRAM Apex 1, 40T, DUB Wide, 172.5mm length Size: 58,61 SRAM Apex 1, 40T, DUB Wide, 175mm length
	Bottom bracket	SRAM DUB Wide, T47 threaded, internal bearing
	Cassette	SRAM PG-1130, 11-42, 11 speed
	Chain	SRAM PC-1130, 11 speed
	Max chainring size	1x: 44T (SRAM), 50T (Shimano), 2x: 50/34
Wheels
	Hub front	Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
	Skewer front	Bontrager Switch thru axle
	Hub rear	Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12mm thru axle
	Skewer rear	Bontrager Switch thru axle, removable lever
	Rim	Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve
	Spokes	14g stainless steel, black
	Tire	Size: 49,52,54,56,58,61 Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm Size: 49,52,54,56,58,61 Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
	Tire part	Bontrager TLR sealant, 180 ml/6 oz
	Rim strip	Bontrager TLR
	Max tire size	See service manual
Components
	Saddle	Size: 49,52 Bontrager P3 Verse Comp, steel rails, 155 mm width Size: 54,56,58,61 Bontrager P3 Verse Comp, steel rails, 145 mm width
	Seatpost	Bontrager alloy, 27.2mm, 12mm offset, 330mm length
	Handlebar	Size: 49 Bontrager Elite Gravel, 38cm width Size: 52 Bontrager Elite Gravel, 40cm width Size: 54,56 Bontrager Elite Gravel, 42cm width Size: 58,61 Bontrager Elite Gravel, 44cm width
	Handlebar tape	Bontrager Supertack Perf tape
	Stem	Size: 49 Bontrager Elite, 31.8mm, Blendr-compatible, 7-degree, 70mm length Size: 52,54 Bontrager Elite, 31.8mm, Blendr-compatible, 7-degree, 80mm length; Size: 56,58 Bontrager Elite, 31.8mm, Blendr-compatible, 7-degree, 90mm length; Size: 61 Bontrager Elite, 31.8mm, Blendr-compatible, 7-degree, 100mm length
Brakes
	Brake	Tektro C550 mechanical disc brake, dual piston, flat mount
	Brake rotor	Tektro, centerlock, 160mm
	Rotor size	Max brake rotor sizes: 160mm front & rear
Weight
	Weight Size	56
	Weight	9.91 kg / 21.85 lbs (with TLR sealant, no tubes)
	Weight limit	Maximum total weight limit (bicycle, rider, cargo): 275 pounds (125 kg)

* Specifications and MSRP are subject to change without notice
