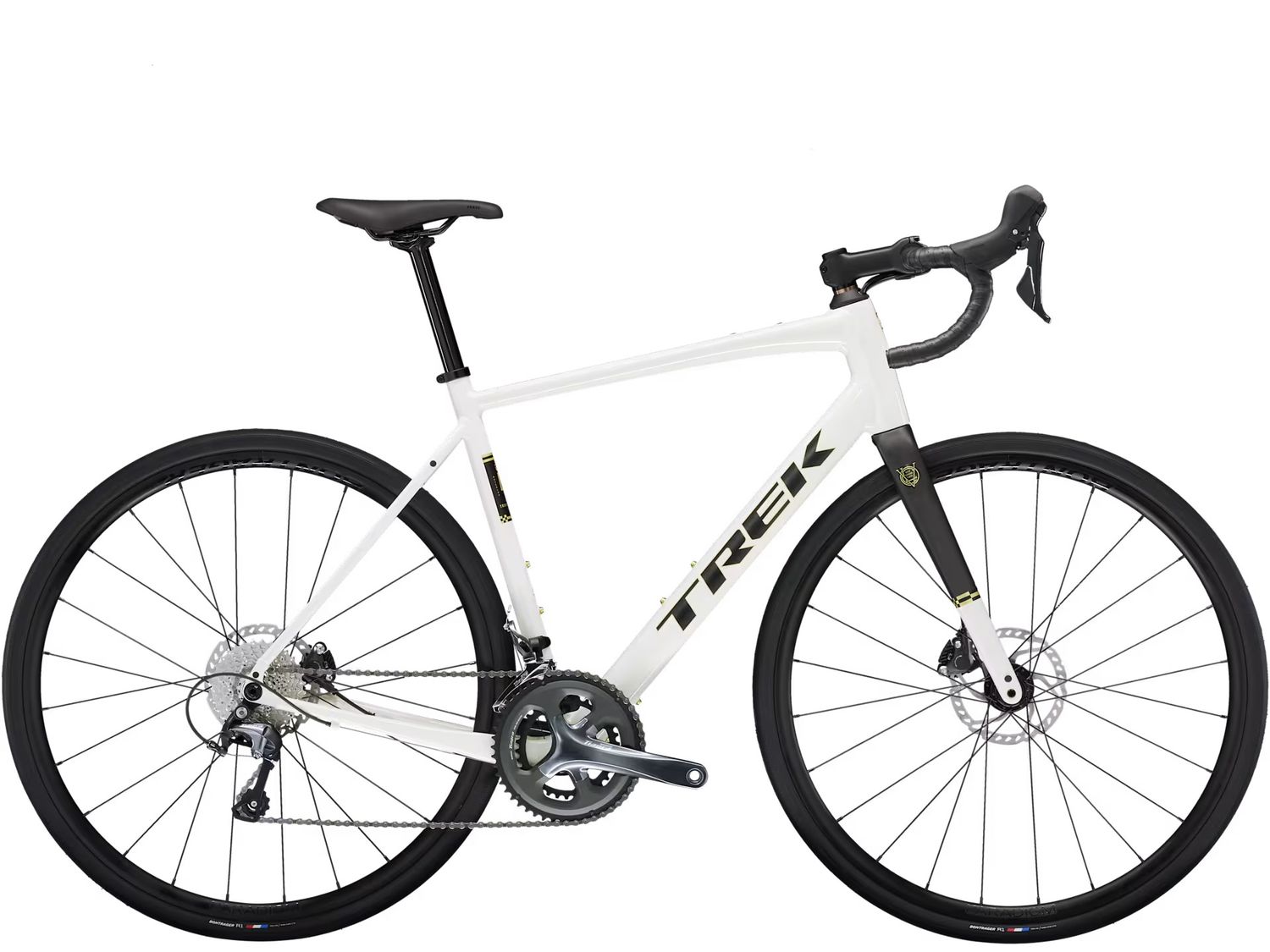

Domane AL 4 is a speedy and versatile road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminum frame, clearance for larger tires, a 10-speed Shimano Tiagra drivetrain, top tube mounts, and an all-day road comfort geometry — Domane AL 4 is perfect for casual pedaling, group rides, fast commutes, and even venturing beyond paved paths to most gravel roads.
Features:
| Frameset | ||
| Frame | 100 Series Alpha Aluminum | |
| Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle | |
| Max tire size | 38mm without fenders, 35mm with fenders (as measured, see manual for details) | |
| Drivetrain | ||
| Shifter | Shimano Tiagra R4725, short reach lever, 10 speed and Shimano Tiagra R4720, 10 speed | |
| Front Derailleur | Shimano Tiagra 4700, 31.8mm clamp | |
| Rear Derailleur | Shimano Tiagra 4700, long cage, 34T max cog | |
| Crankset | Shimano Tiagra 4700, 50/34, 165mm (Size 44), 170mm (Size 49, 52), 172.5mm (Size 54, 56), 175mm (Size 58, 61) | |
| Bottom Bracket | Shimano RS501 BSA | |
| Cassette/Freewheel | Shimano HG500, 11-32, 10 speed | |
| Chain | Shimano Tiagra HG54, 10 speed | |
| Wheels | ||
| Rims | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve | |
| Front Hub | Formula RX-512 alloy, 6-bolt, 100x12mm thru axle | |
| Rear Hub | Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle | |
| Tires | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm | |
| Components | ||
| Saddle | Verse Short, steel rails, 145mm width | |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length (Size 44, 49), 330mm length (Size 52-61) | |
| Handlebar | Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop (Various widths by size) | |
| Handlebar tape | Bontrager Supertack Perf tape | |
| Stem | Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm-110mm length (Varies by size 44-61) | |
| Brakes | Shimano Tiagra hydraulic disc | |
| Rotors | Shimano RT66, 6-bolt, 160mm | |
| Weight | ||
| Bike Weight | 56 - 10.35 kg / 22.82 lbs | |
| Weight Limit | Maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg) |
* Specifications and MSRP are subject to change without notice
** $30 Charge for Shipping of Bike from Distribution to Bike Shop
