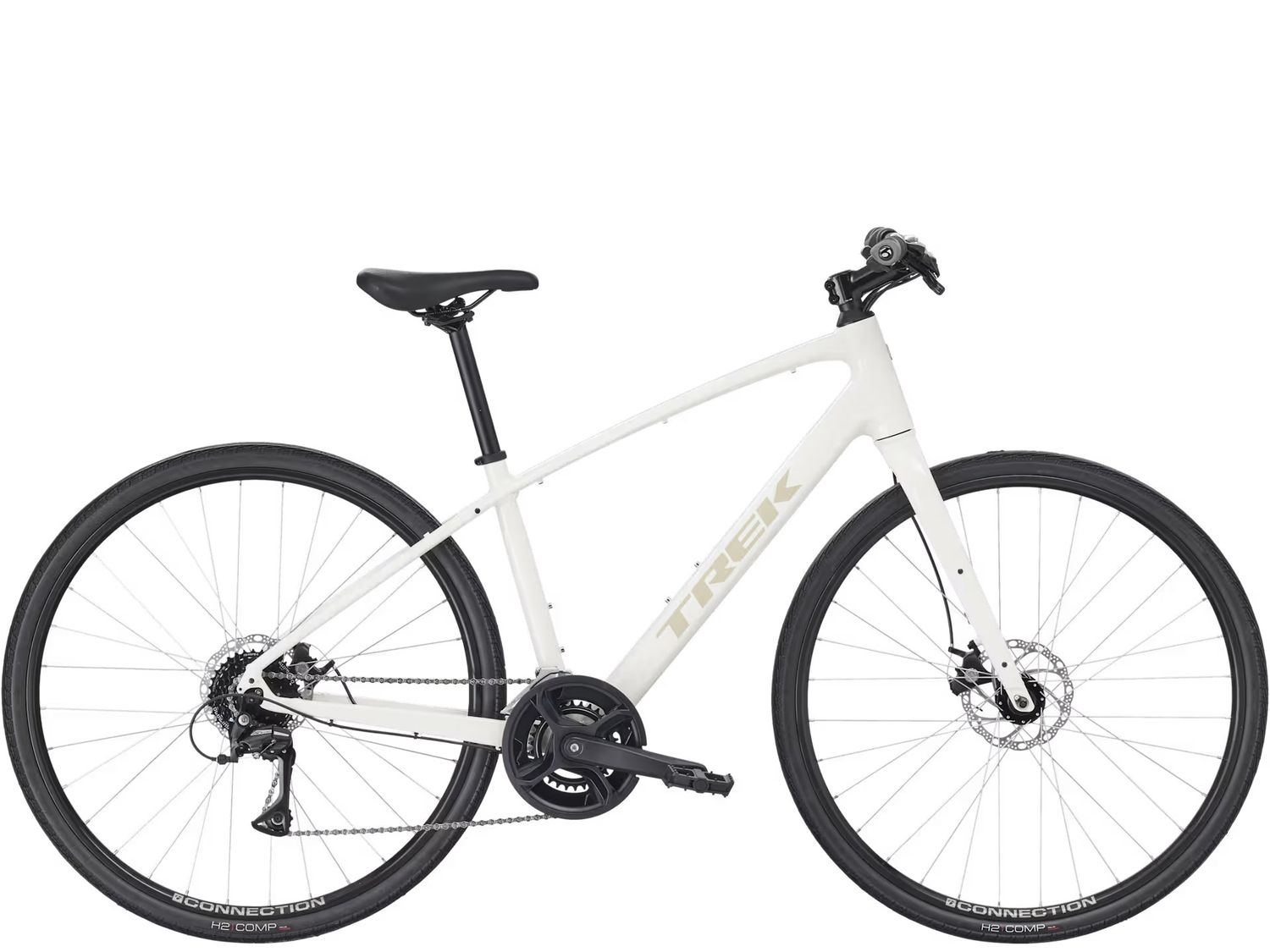

Trek FX 1 Stepover Gen 4

FX 1 is a versatile and sleek hybrid bike for riding all around town. It's perfect to ride for exercise, commuting, or fun. You get price-conscious parts that still deliver a big range of speeds, disc brakes that let you stop on a dime, and loads of mounts for accessories.

Frameset

Frame

Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR

Fork

FX steel, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR

Wheels

Hub front

Formula DC-20, alloy, 6-bolt, 100x5mm

Skewer front

139x5mm bolt-on

Hub rear

Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm

Skewer rear

152x5mm QR

Tire

Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm

Drivetrain

*Shifter

Size: XS, S, M, L, XL

Shimano EF500, 8 speed

Size: XS, S, M, L, XL

Shimano EF500, 2 speed

Front derailleur

Shimano Tourney TY606, 31.8/34.9mm clamp, top swing, dual pull

Rear derailleur

Shimano Acera M3020-8, 40T max cog

Crank

Forged alloy, 46/30, 170mm length

Bottom bracket

Sealed cartridge, 68mm

Cassette

Shimano HG200, 12-32, 8 speed

Chain

KMC Z8.3

Pedal

Wellgo nylon platform

Components

Saddle

Bontrager Sport

*Seatpost

Size: XS, S, M

Bontrager alloy, 27.2mm, 12mm offset, 330mm length

Size: L, XL

Bontrager alloy, 27.2mm, 12mm offset, 400mm length

*Handlebar

Size: XS, S, M, L

Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width

Size: XL

Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width

Grips

Trek Line Ergonomic Comp, lock-on

*Stem

Size: XS, S, M
Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length

Size: L, XL
Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length

Brake

Tektro MD-U310 mechanical disc

Brake rotor

Tektro wave, 6-bolt, 160mm

Weight

M - 13.00 kg / 28.67 lb

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
