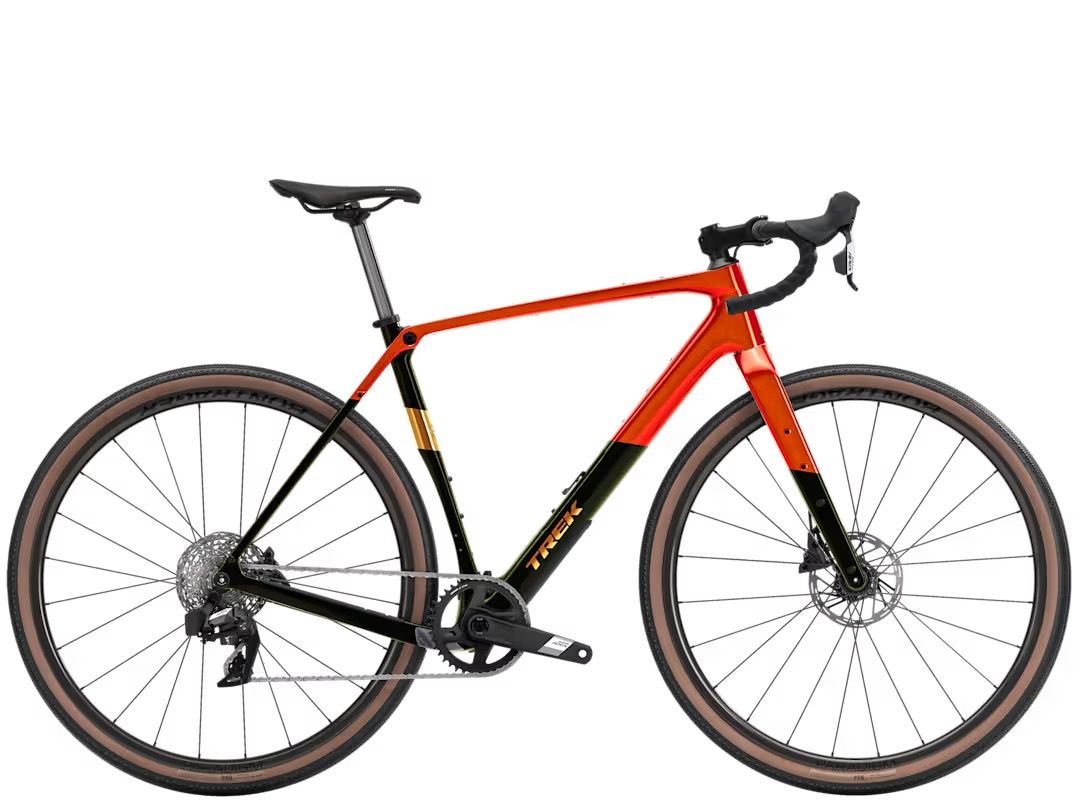

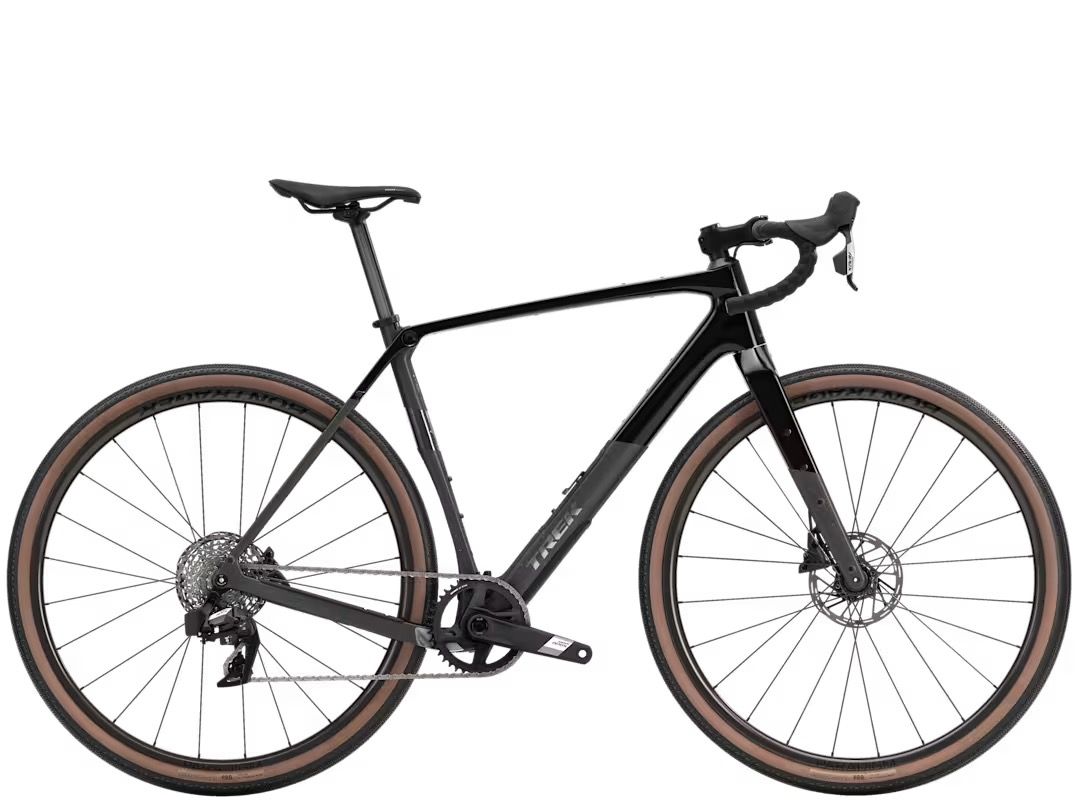

27 Trek Checkpoint SL 5 AXS Gen 3

Name: 27 Trek Checkpoint SL 5 AXS Gen 3
Brand: Trek
SKU: 561_sku_main
Price: 3999.98 CAD
Availability: InStock

SKU 5321622

$3 999.98

NEW 2027

Comes with 2 years of New Bike Tune Ups and 10% Off accessories for 3 months from date of purchase.

Out of stock, available for pre-order

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

27 Trek Checkpoint SL 5 AXS Gen 3

Product Details

Brand: Trek

UPC: 197216040026

Checkpoint SL 5 AXS Gen 3 is an adventure-ready carbon gravel bike built to chase the horizon. Its lightweight frame features comfort-focused geometry, clearance for 50mm tires (as measured), and plenty of mounts for bags and gear. IsoSpeed tech helps soak up vibrations from rough roads, so you can float over chatter and potholes. Plus, it's equipped with a wireless SRAM Apex XPLR AXS drivetrain that offers plenty of gears for exploring the long, dusty road.

Technical Specifications

Frameset
	Frame	500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle
	Fork	Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
Drivetrain
	Battery	SRAM AXS battery pack (with charger)
	Shifter	SRAM Apex AXS, 12 speed
	Rear derailleur	SRAM Apex XPLR eTap AXS, 44T max cog
	Crank	Size XS, S: SRAM Apex 1, 40T, DUB Wide, 165mm length
		Size M: SRAM Apex 1, 40T, DUB Wide, 170mm length
		Size ML, L: SRAM Apex 1, 40T, DUB Wide, 172.5mm length
		Size XL: SRAM Apex 1, 40T, DUB Wide, 175mm length
	Bottom bracket	SRAM DUB Wide, T47 threaded, internal bearing
	Cassette	SRAM XPLR PG-1231, 11-44, 12 speed
	Chain	SRAM Apex, 12 speed
	Max chainring size	1x:44 2x: 46/30
Wheels
	Wheel front	Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples
	Wheel rear	Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples
	Skewer front	Bontrager Switch chamfered thru axle
	Skewer rear	Bontrager Switch chamfered thru axle, removable lever
	Tire	Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
	Tire part	Bontrager TLR sealant, 180 ml/6 oz
	Rim strip	Bontrager TLR
	Max tire size	50mm without fenders, 42mm with fenders (as measured, see manual for details)
Components
	Saddle	Size XS, S: Verse Short Comp, steel rails, 155mm width
		Size M, ML, L, XL: Verse Short Comp, steel rails, 145mm width
	Seatpost	Bontrager carbon, 27.2mm, 8mm offset, 330mm length
	Handlebar	Size XS: Bontrager Elite Gravel, alloy, 40cm width
		Size S, M: Bontrager Elite Gravel, alloy, 42cm width
		Size ML, L: Bontrager Elite Gravel, alloy, 44cm width
		Size XL: Bontrager Elite Gravel, alloy, 46cm width
	Handlebar tape	Bontrager Supertack Perf tape
	Stem	Size XS: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length
		Size S: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
		Size M, ML: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
		Size L: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
		Size XL: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
	Brake rotor	SRAM Paceline, rounded, centrelock, 160mm
	Rotor size	Max brake rotor sizes: 180mm front & rear
	Bag	Bontrager BITS Internal Frame Storage Bag
Weight
	Weight	ML - 9.50 kg / 20.95 lbs (with TLR sealant, no tubes)
	Weight limit	Maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg)

* Specifications and MSRP are subject to change without notice

** $30 Charge for Shipping of Bike from Distribution to Bike Shop
